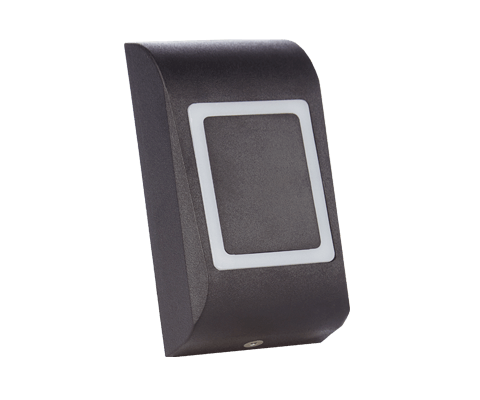

Elegant and compact 125 kHz RFID reader. The housing, in ABS, comes with a big rectangular LED. Designed to be installed either outside or inside, it has an RS-485 bus. Its tricolor LED, tamper and buzzer are managed directly by the WS4 controllers. It can read EM or HID 125 kHz cards, depending on the programming selected.
Features Specifications Support
EH RFID Reader
The MTPX-RS-EH reads EM4002/4100 and HID 125 kHz compatible cards with a read range of up to 5 cm distance.
RS-485 output
It works with an RS-485 output, establishing a double communication between the reader and the WS4 controllers, reducing the number of wires needed in the installation.
Mullion RFID reader
The MTPX-RS-EH with its slim housing is suitable for doorframe mounting.
It comes also with a large LED around the reader for an easy and stylish reading of the status of the door.
Black Edition
The Black Edition represents a whole new family of products consisting of single or double technology, housed in an elegant black ABS case. From now on your RFID and biometric readers as well as keypad will be available with this housing.
| Mounting: | Surface |
|---|---|
| Housing: | ABS |
| Colours: | Black / Silver |
| Technology: | RFID |
| Reading type: | EM 4002/4100 and HID (125 kHz) |
| Read range: | Up to 5 cm |
| Output: | RS-485 |
| Visible signal: | - Green LED: Access granted - managed by the host
- Red LED: Access denied - managed by the host - Orange LED: idle mode (ON/OFF) |
| Audible signal: | 1 internal buzzer (ON/OFF) - managed by the host |
| Tamper protection: | Yes - managed by the host |
| Voltage: | 9-14 V DC |
| Consumption: | Max. 50 mA |
| MECHANICAL CHARACTERISTICS | |
| IP rating: | IP65 |
| Dimensions (L x H x W): | 51 x 92 x 27 mm |
| Weight: | ~0.15 kg |
| Operating temperature: | -20ºC to +50ºC |
| Operating humidity: | 5% to 95% RH without condensation |
| VERSIONS | |
| MTPXBK-RS-EH V2: | ABS - Black |
| MTPXS-RS-EH V2: | ABS - Silver |
| * All product specifications are subject to change without notice. | |
