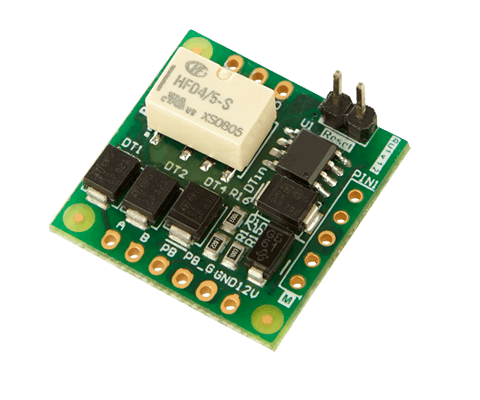

The RU1 is a remote relay unit of 1 relay, with RS-485 output and 9-12 V DC.
| Technology: | Remote relay control unit |
|---|---|
| Relay output: | 1 Relay 2A/24 V AC/DC |
| Relay time: | Pulse (1 to 60 sec) or toggle (ON/OFF) |
| Push Button Input: | 1 |
| Wiring: | 20 cm wires |
| Voltage: | 9-14 VDC |
| Consumption: | Max. 50 mA |
| MECHANICAL CHARACTERISTICS | |
| PCB Dimensions: | 25 x 25 mm |
| Weight: | ~0.05 kg |
| Operating temperature: | 0ºC to +40ºC |
| Operating humidity: | 0% to 95% RH without condensation |
| * All product specifications are subject to change without notice. | |
