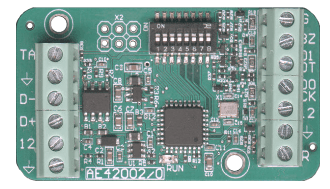

WS4-CNV

RS-485/Wiegand Converter

The WS4-CNV is an RS-485/Wiegand converter with a universal interface.

This interface makes it possible to connect any type of reader (Wiegand, Data/Clock ISO2, Dallas, and RS-232) to the WS4 controllers.

Features Specifications Support

XPR / Solutions / Web Access / Converters /

WS4-CNV

Features

Warning: Trying to access array offset on value of type bool in /home/clients/5d2b263ba9f3fa7771598d8187c95c96/sites/xpr-solutions.com/wp-content/themes/arrakis-child/single-products_old.php on line 88

Deprecated: pathinfo(): Passing null to parameter #1 ($path) of type string is deprecated in /home/clients/5d2b263ba9f3fa7771598d8187c95c96/sites/xpr-solutions.com/wp-content/themes/arrakis-child/single-products_old.php on line 88

RS-485/Wiegand converter

With a universal interface that enables the connection of any type of reader to the WS4 controllers.

Specifications

Versions:
Technology:	RS-485/Wiegand converter
Protocol:	Wiegand, Data/Clock ISO2, Dallas and RS-232
Tamper:	Yes
Voltage output:	13.8 VDC; max. 300 mA
Consumption:	30 mA without external elements
Dimensions:	66 x 41 mm
WS4-CONV_V2	Wiegand to RS-485 Converter
* All product specifications are subject to change without notice.

Support

Download WS4-CNV_V2 Manual - DE, EN, ES, FR, IT, NL
GO Manuals from previous versions
