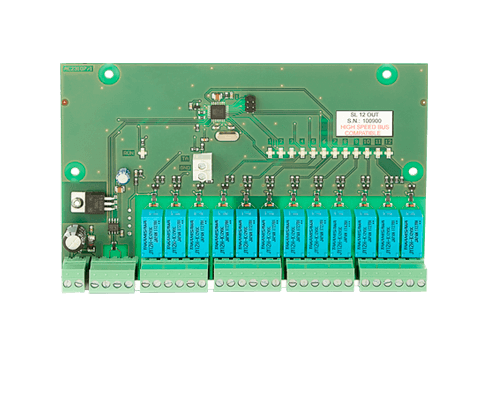

WS4-RB

WS4 Relay Boards

You can add easily 12 or 24 relay outputs to your webserver installation with our WS4 relay boards.

The electronic will be protected by a resistant aluminium housing.

XPR / Solutions / Web Access / Modules /

WS4-RB

Features

Warning: Trying to access array offset on value of type bool in /home/clients/5d2b263ba9f3fa7771598d8187c95c96/sites/xpr-solutions.com/wp-content/themes/arrakis-child/single-products_old.php on line 88

Deprecated: pathinfo(): Passing null to parameter #1 ($path) of type string is deprecated in /home/clients/5d2b263ba9f3fa7771598d8187c95c96/sites/xpr-solutions.com/wp-content/themes/arrakis-child/single-products_old.php on line 88

RS-485 Connection

The WS4-RB is an extension module compatible with RS-485 and IP protocols for local bus communications.

Specifications

References:
Connection:	RS-485 connection via local bus
Ouputs:	12 - Relays 2 contacts NO 2 A - 48 V
Tamper:	1 tamper input
Consumption:	13.8 V DC min. 20 mA - 250 mA standard - max. 300 mA
Visible signal:	LEDs to indicate the output status
Terminals:	Disconnectable
WS4-RB-E:	12 relay board, only electronic
WS4-PS5:	Universal aluminium wall-mounted housing with 1 x 5A PSU for door controller - Webserver
* All product specifications are subject to change without notice.

Support

Download WS4-RB Manual - DE, EN, ES, FR, IT, NL
