XP-QR
QR Code and RFID Reader
The QR Code and RFID reader integrates effectively with our PROS CS client-server software and EWS controllers, supporting QR code, 125 kHz and/or 13.56 MHz credentials and communicating via standard Wiegand protocol.
The configuration and the firmware update can be done using our PROS CS software via the USB-C input on the back of the reader or with a programming card.
The XP products are coming with the Xsecure® key programmable with the Product Manager software.
Features Specifications Support Related products
XPR / Solutions / ONLine Access / RFID Readers / XP-QR
Features
Xsecure solution
The Xsecure solution is based on the concept of writing the identifier as data on pre-coded MIFARE® DESFire® EV3 13.56 MHz cards. Xsecure enables each card access key to be distinct and unique, produced through an irreversible diversification process. As a result, the data on the card is encrypted and sealed again, with an error checking against spoofing. Only the reader and the production card encoding system are aware of this operation. XPR encodes the cards and validates the identifiers issued to avoid duplication.
QR Code
The reader is equipped with a high-performance optical sensor capable of capturing QR codes on both paper and smartphone surfaces. With built-in illumination and an aiming spot, it provides fast and accurate decoding in any lighting condition, from bright sunlight to complete darkness. Its fixed focal distance ensures stable and consistent detection, delivering a smooth and reliable user experience.Lorem ipsum…
Mifare
The XP-QR-MFBT reads Mifare CSN, DESFire and Xsecure credentials with a read range of up to 9 cm.
The XP-QR-EHMFBT reads 125 KHz EM/HID (EM 4100/HID Prox), Mifare CSN, DESFire and Xsecure credentials with a read range of up to 9 cm.

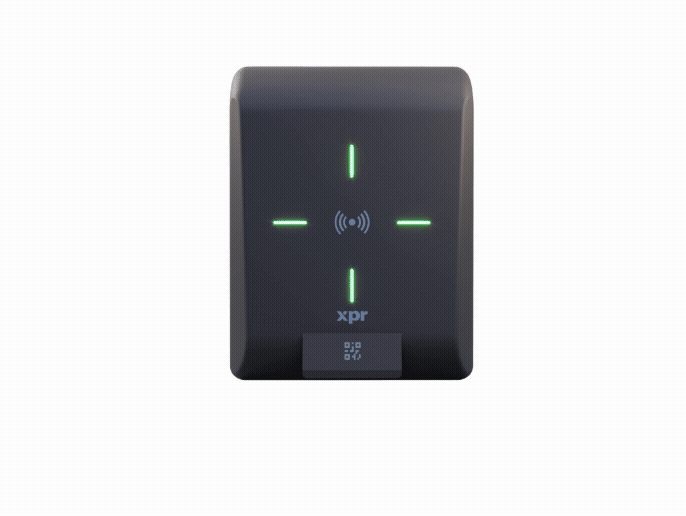

Front intersected tricolour LED
The state of the reader is displayed by a front intersected triolour LED. When the card or key fob is presented, the LED transitions from blue to green if the access is granted, or from blue to red if it is denied. A prominent blue LED illuminates when the reader is connected and ready to receive credentials (idle mode).
Compatible with UK, EMEA and US standard mounting
Our device offers a variety of mounting options that comply with standards used in the UK, EMEA, the USA, and most European countries. This provides interoperability across different locations, making installation straightforward and providing peace of mind for our customers worldwide.
Plug and Play
The Xpro readers’ Plug and Play system simplifies installation and offers secure and flexible access management options. The readers are pre-configured and ready to connect with the solution of your choice. This saves both time and resources when implementing the access control system.
Connectivity
A: USB-C connector for configuration management and firmware updates in order to ensure optimal performance and functionality.
B: Wire terminals with distinct functions: Power, RS-485, Wiegand D0, D1, LED, Buzzer control, Tamper.
Specifications
| XP-QR-MFBT | XP-QR-EHMFBT | |
|---|---|---|
| Mounting: | Surface mount | Surface mount |
| Housing: | Polycarbonate copolymer (UL94) | Polycarbonate copolymer (UL94) |
| Internal buzzer: | With adjustable intensity using software | With adjustable intensity using software |
| Communication: | Wiegand | Wiegand |
| Reading range: | Up to 9 cm, depending on the tag type and size | Up to 9 cm, depending on the tag type and size |
| Operating frequency: | 13.56 MHz | 125 KHz and 13.56 MHz |
| QR code illumination field and aiming spot: | Field of view 42° x 28° and Focal distance 19.5 cm | Field of view 42° x 28° and Focal distance 19.5 cm |
| Tamper protection: | Yes | Yes |
| Wiring: | Terminal block | Terminal block |
| Operating voltage: | 9 – 15 V DC | 9 – 15 V DC |
| Max. consumption at 12 V DC: | 300 mA | 300 mA |
| Supported Credentials: | Xsecure, Mifare CSN (Classic, DESfire, Plus, Ultralight), Mifare DESfire (EV1, EV2, EV3) | Xsecure, Mifare CSN (Classic, DESfire, Plus, Ultralight), Mifare DESfire (EV1, EV2, EV3) |
| Dimensions: | 107 x 80 x 32 mm | 107 x 80 x 32 mm |
| Weight: | ~0.16 kg | ~0.16 kg |
| Environmental rating: | Indoor/Outdoor IP 65 (resin potted) |
|---|---|
| Operating temperature: | -20°C to +50°C |
| Operating humidity: | 0% to 95% RH (non-condensing) |
| XP-QR-MFBT | Mifare – with BLE module |
|---|---|
| XP-QR-EHMFBT | Mifare – EH – with BLE module |
All product specifications are subject to change without notice.
